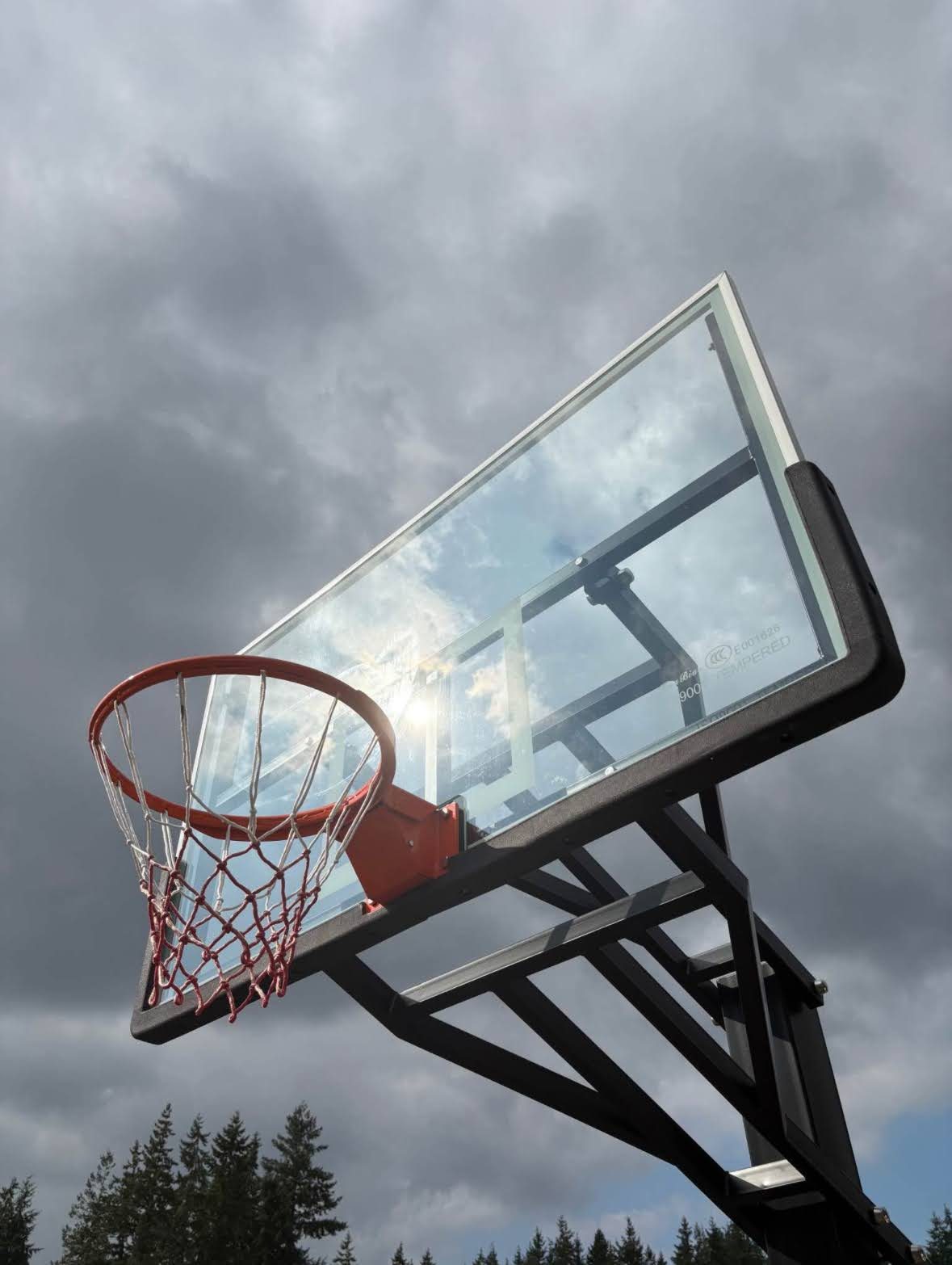

Heavy-duty basketball hoop tempered glass backboard against dramatic sky
BUILDERS BAY SPORTS SUPPLY
In-Ground · Adjustable · Steel Frame 604-800-7575

Built like it's
permanent.

A tempered-glass, steel-post hoop system engineered for driveways and courts that only get installed once. Square-tube post, welded frame, screw-driven lift — no shortcuts in the steel.

Heavy-Duty Adjustable Hoop
$1,800
+ tax
Scroll
The short version

Most hoops are assembled. This one is engineered — a 7"×7" square steel post, a welded and gear-driven lift arm, and a 3/8" tempered glass backboard, finished in a salt-spray-tested powder coat built for years outdoors.

Every install shown on this page is a real backyard, driveway, or court — not a studio render. Scroll down for the full anatomy of the frame and the complete spec sheet, in plain measurements.

Anatomy

What's actually holding
the rim up.

Callouts reference the same steel gauges and dimensions listed in the full spec sheet below.

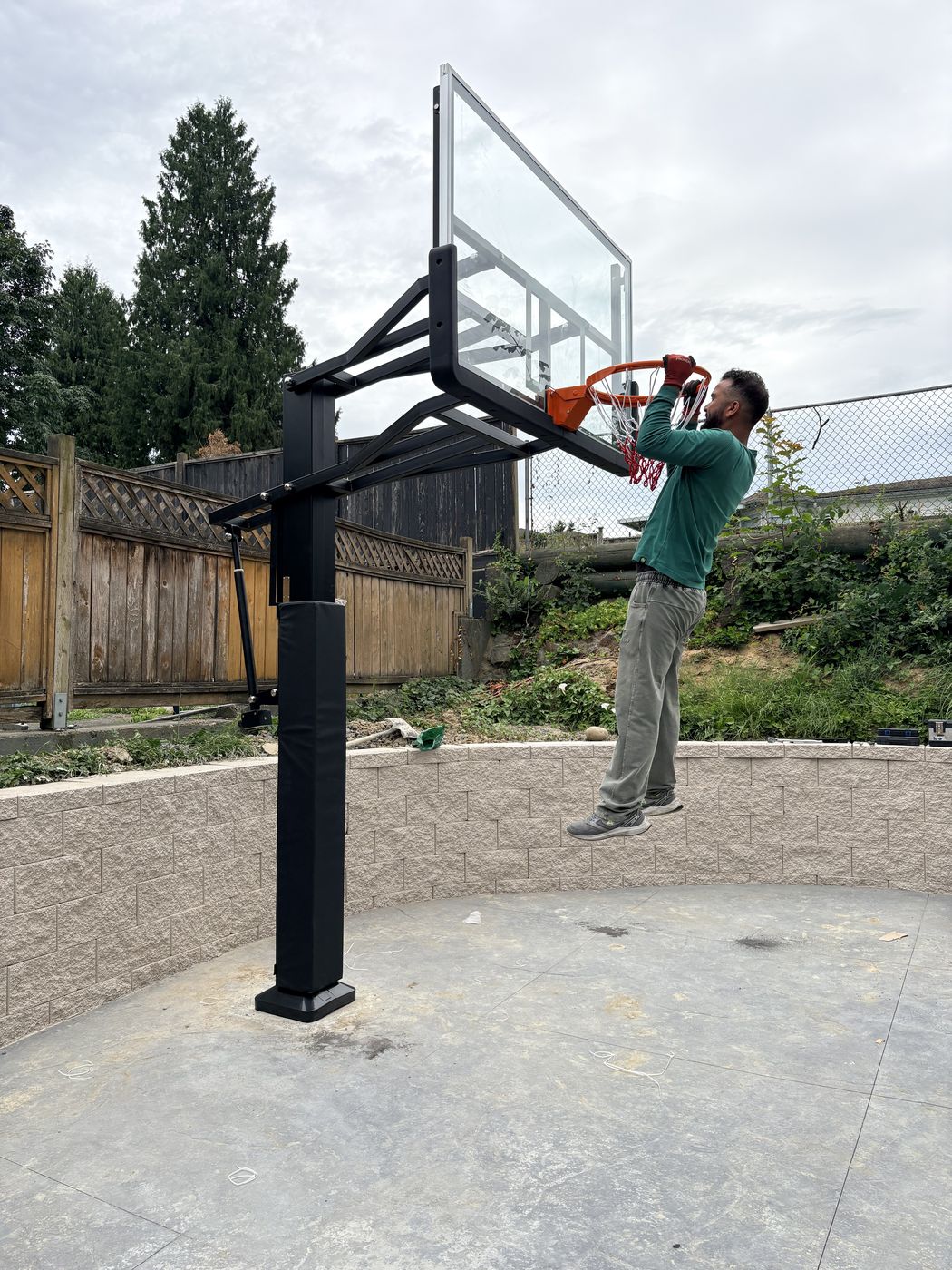

Side profile of the basketball hoop showing backboard, rim, arm, and post
Backboard
71" × 41.3" tempered glass, 3/8" thick
Rim
13/16" solid round steel, ≤30° down-angle
Extension arm
37.8"–49.0" reach, welded steel tube
Height range
5'11"–10'0" rim height, screw-driven lift
Post
7" × 7" square steel tube
Backboard
71" × 41.3" tempered glass, 3/8" thick
Rim
13/16" round steel, ≤30° angle
Extension arm
37.8"–49.0" reach
Post
7" × 7" square tube
Height range
5'11"–10'0" rim height
Full spec sheet

Every gauge, every measurement.

Imperial units
Converted from mfg. metric spec

Backboard

MaterialTempered safety glass
Dimensions71" W × 41.3" H
Thickness3/8" (0.39")
Edge protectionCushioned lower-edge strip

Rim

MaterialSolid round steel
Diameter13/16" (0.79")
Down-angle≤ 30°

Lift & Arm Assembly

Rim height range5'11" – 10'0"
Extension arm reach37.8" – 49.0"
Lead screw travel23.2"
Bevel gear set12T / 24T, module 2.5
Upper pull-rod tube1.89" OD
Lower pull-rod tube1.26" OD
BushingsGraphite-copper sleeve
Arm tubing2.36" × 1.57", 0.12" wall

Post & Frame

Post7" × 7" square tube
Post wall0.12" (3mm)
Backboard frame tube1.57" × 1.57"
Flange plates3/8" steel
Mounting ear plates1/4" steel

Finish & Testing

Surface prepFull oil & rust removal
Coating thickness2.8 – 5.5 mils
Coating hardness3H+ pencil hardness
Corrosion test36-hr salt spray, GB1771-91

Product

NameHeavy-Duty Adjustable Hoop
Mount typeIn-ground, fixed base
AdjustmentScrew-driven, manual crank
Price$1,800 + tax
Real installs

Where it lives.

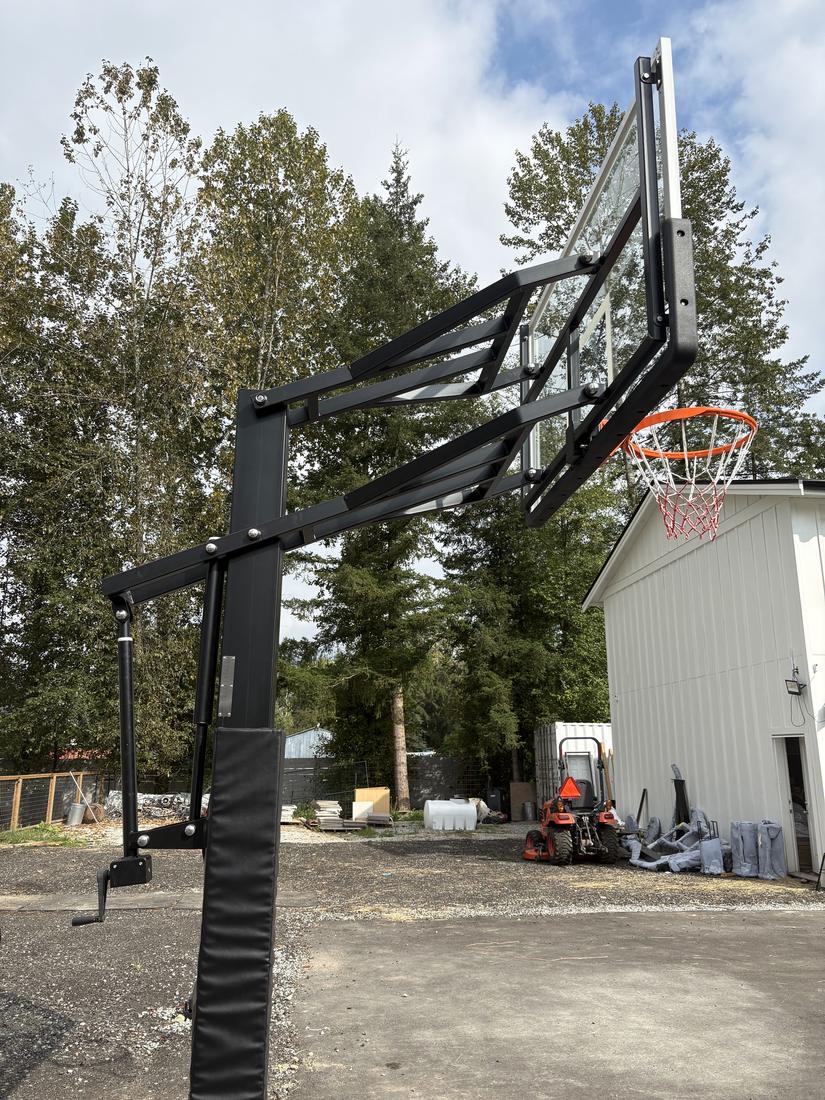

Installed basketball hoop, photo 1

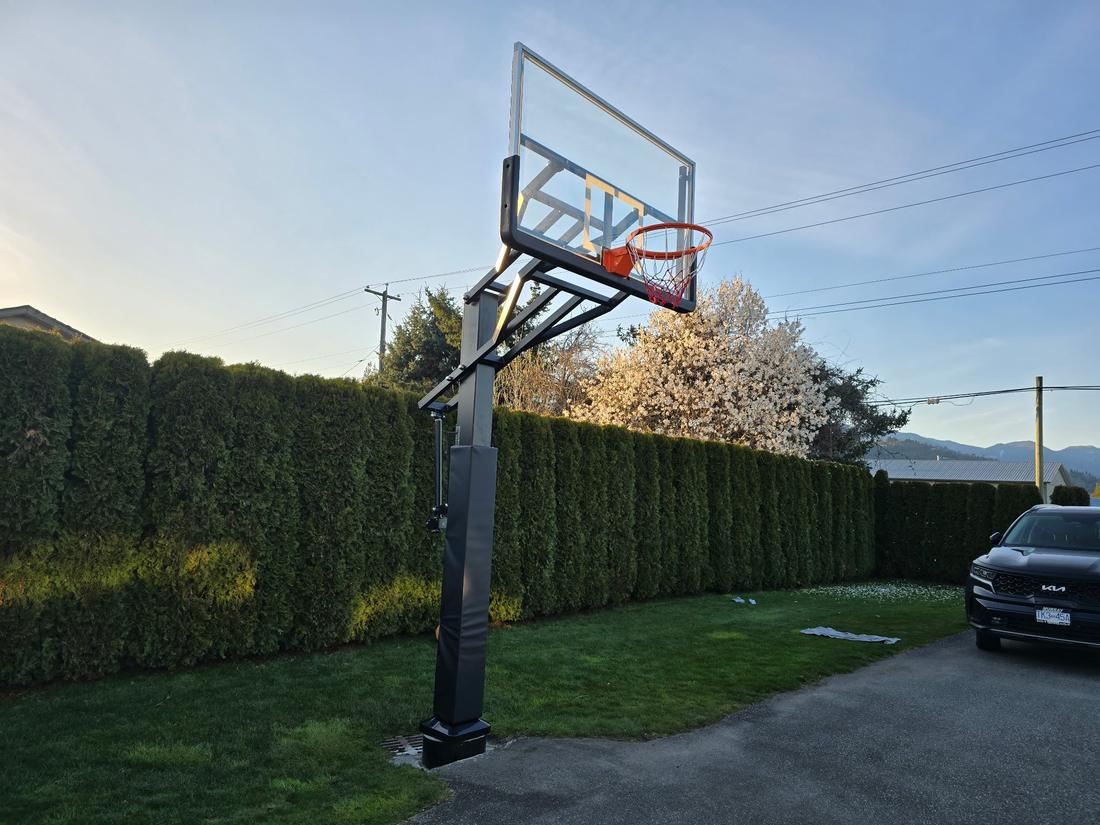

Installed basketball hoop, photo 2

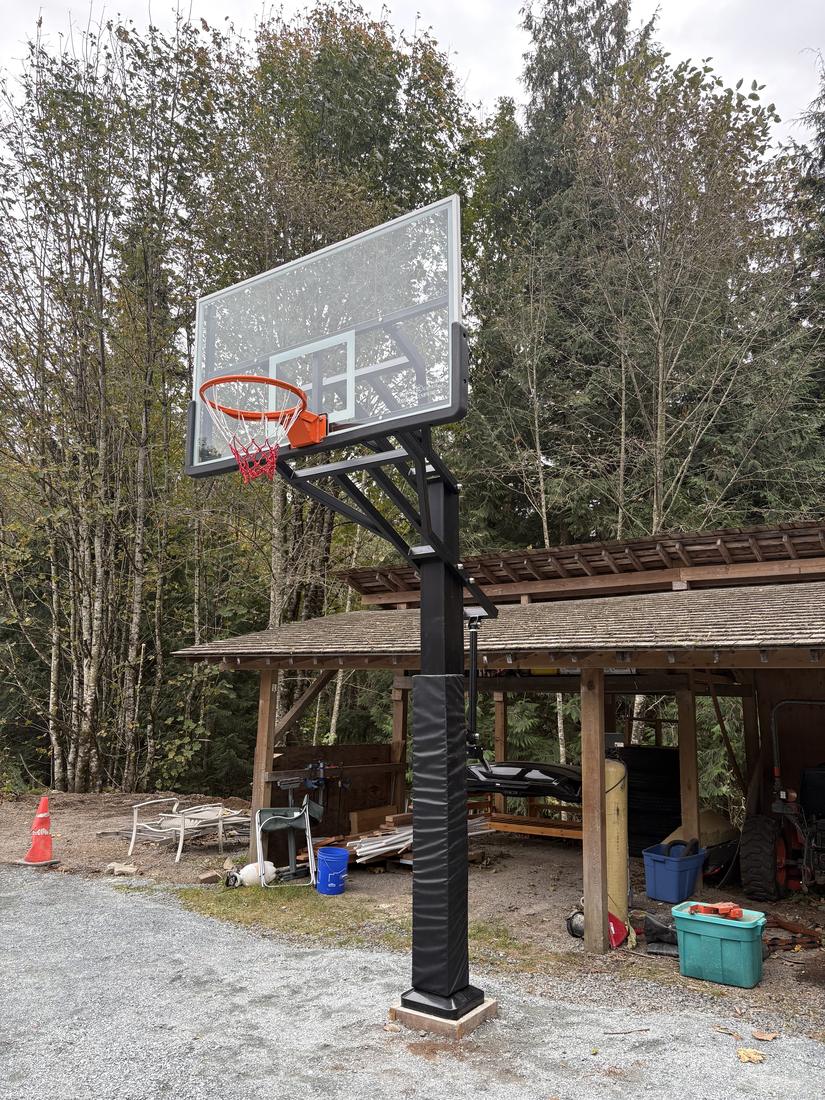

Installed basketball hoop, photo 3

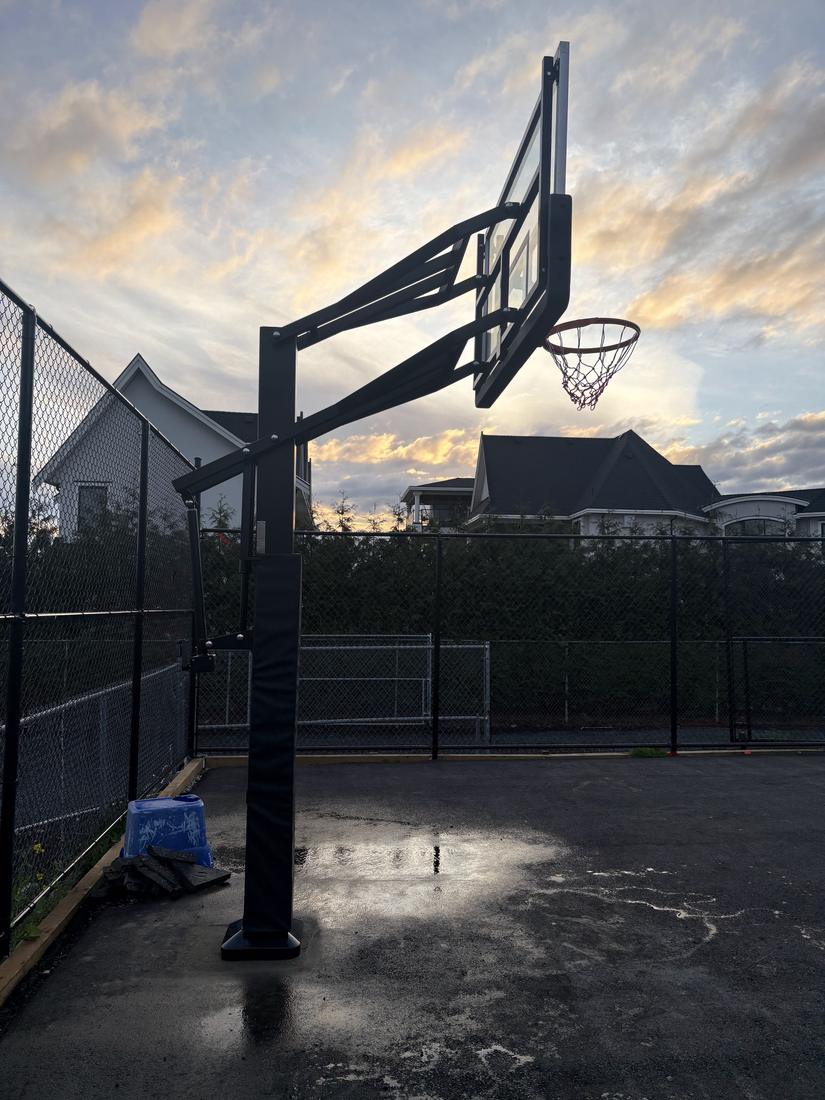

Installed basketball hoop, photo 4

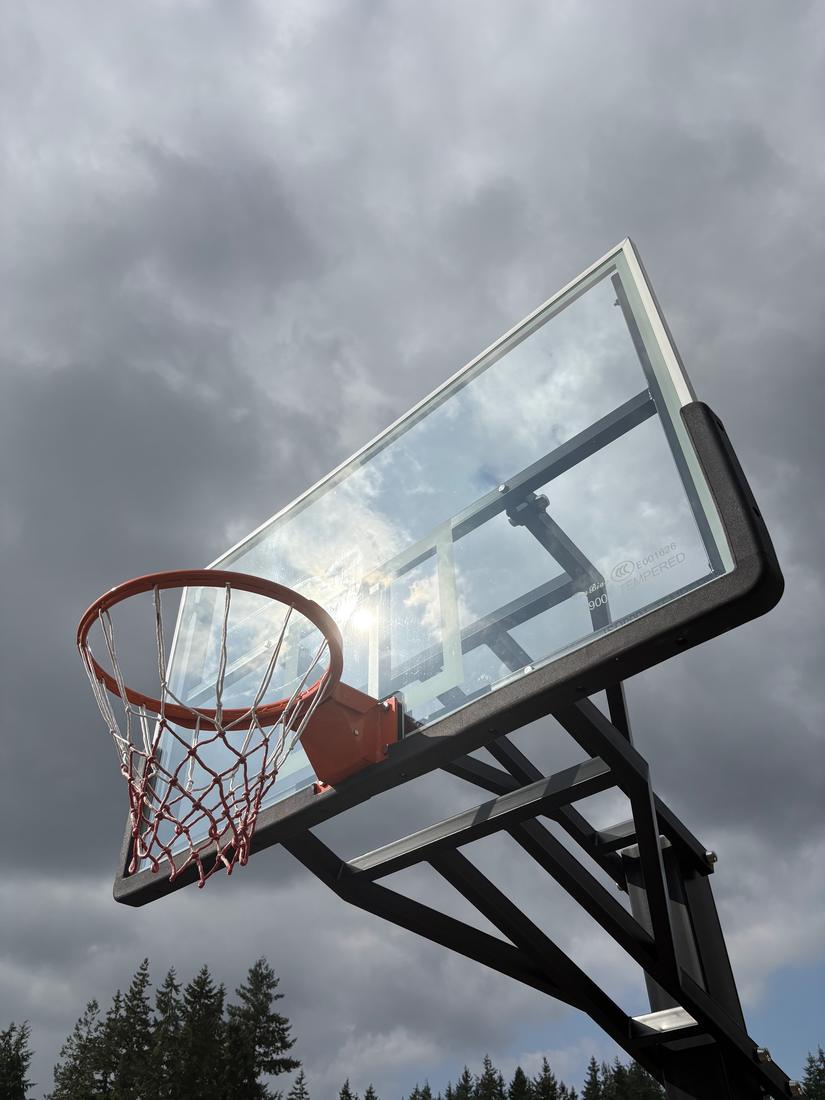

Installed basketball hoop, photo 5

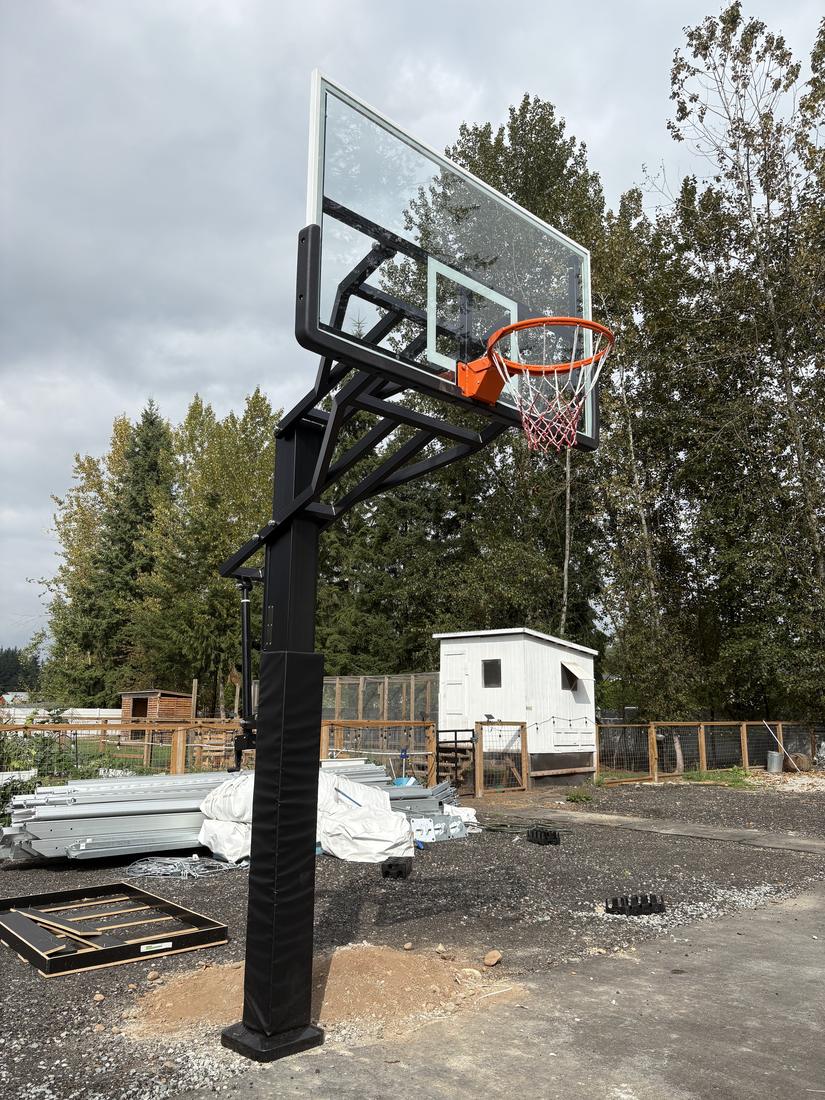

Installed basketball hoop, photo 6

One install.
No do-overs.

Heavy-Duty Adjustable Hoop
$1,800
+ tax
Questions? Call 604-800-7575
